Double balance valve is one of the most commonly used pressure control valves.

Hydraulic balance valve: the key component to ensure the stable operation of the hydraulic system

In the modern hydraulic system, the hydraulic balance valve plays a crucial role, it can effectively balance

the pressure in the system, ensure the smooth operation of the actuator components and the safety and

reliability of the system.

Feature

Load maintenance: The hydraulic balance valve can prevent the hydraulic cylinder or hydraulic motor from

moving down the unwanted, allowing the operator to lift the weight at a certain speed and keep it in a certain

position, preventing the weight from acting ahead of the hydraulic pump due to the load energy, so as to avoid

the cavitation phenomenon of the actuator and the load loss of control.

Pressure balance and compensation: In the hydraulic system, when the load of the hydraulic cylinder is unbalancer

or the load changes greatly during the movement, the hydraulic balance valve can balance the pressure of the system

and keep the smooth operation of the cylinder.

Prevent pressure overload: The hydraulic balance valve can prevent the pressure of the system from exceeding

the predetermined range, protect the safe operation of the system, and prevent the components in the system from

being damaged.

Control flow and pressure: The hydraulic balance valve can be used in combination with the regulating valve to

achieve accurate regulation and control of the system pressure and flow by adjusting the working parameters of the balance valve.

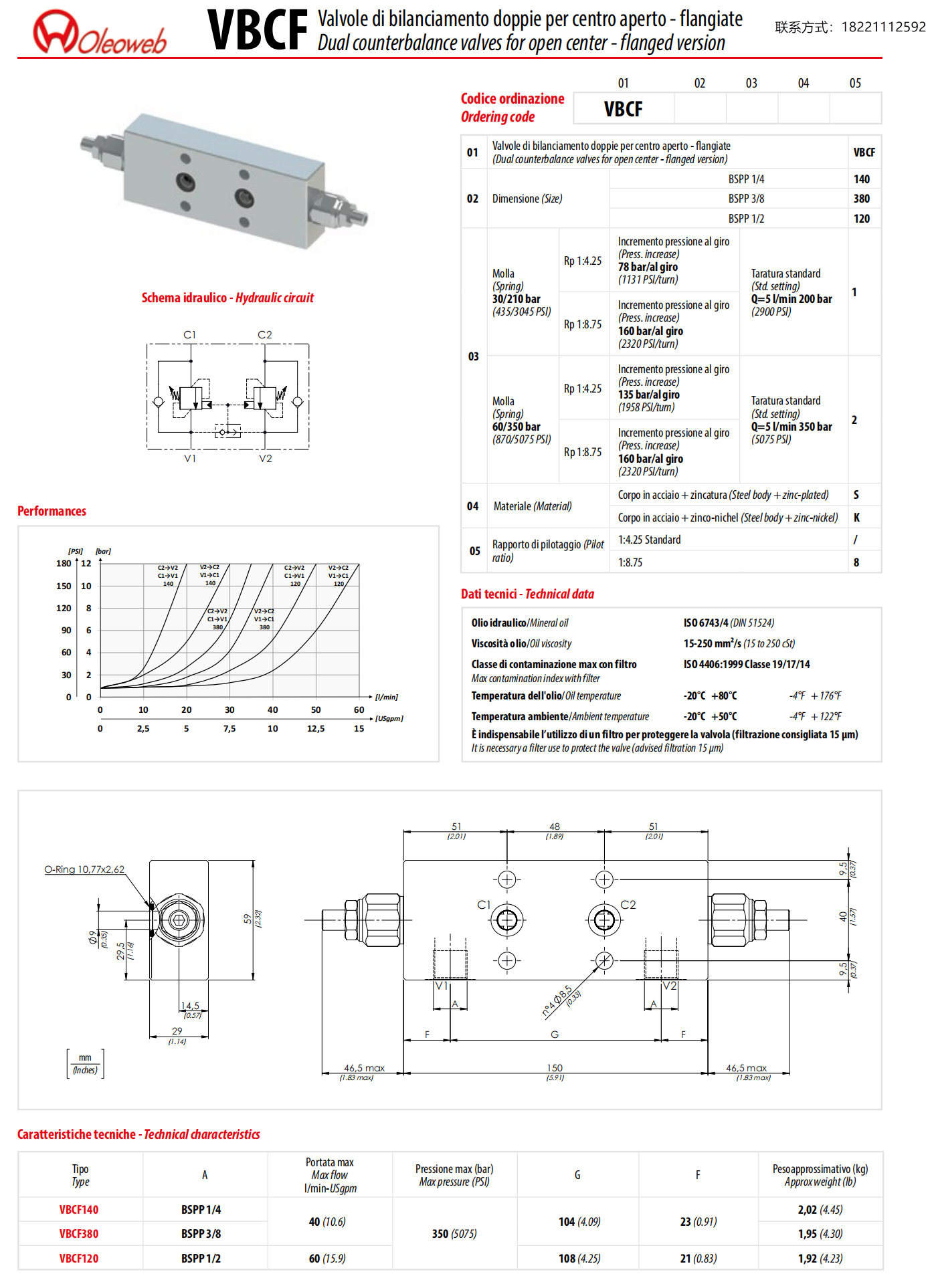

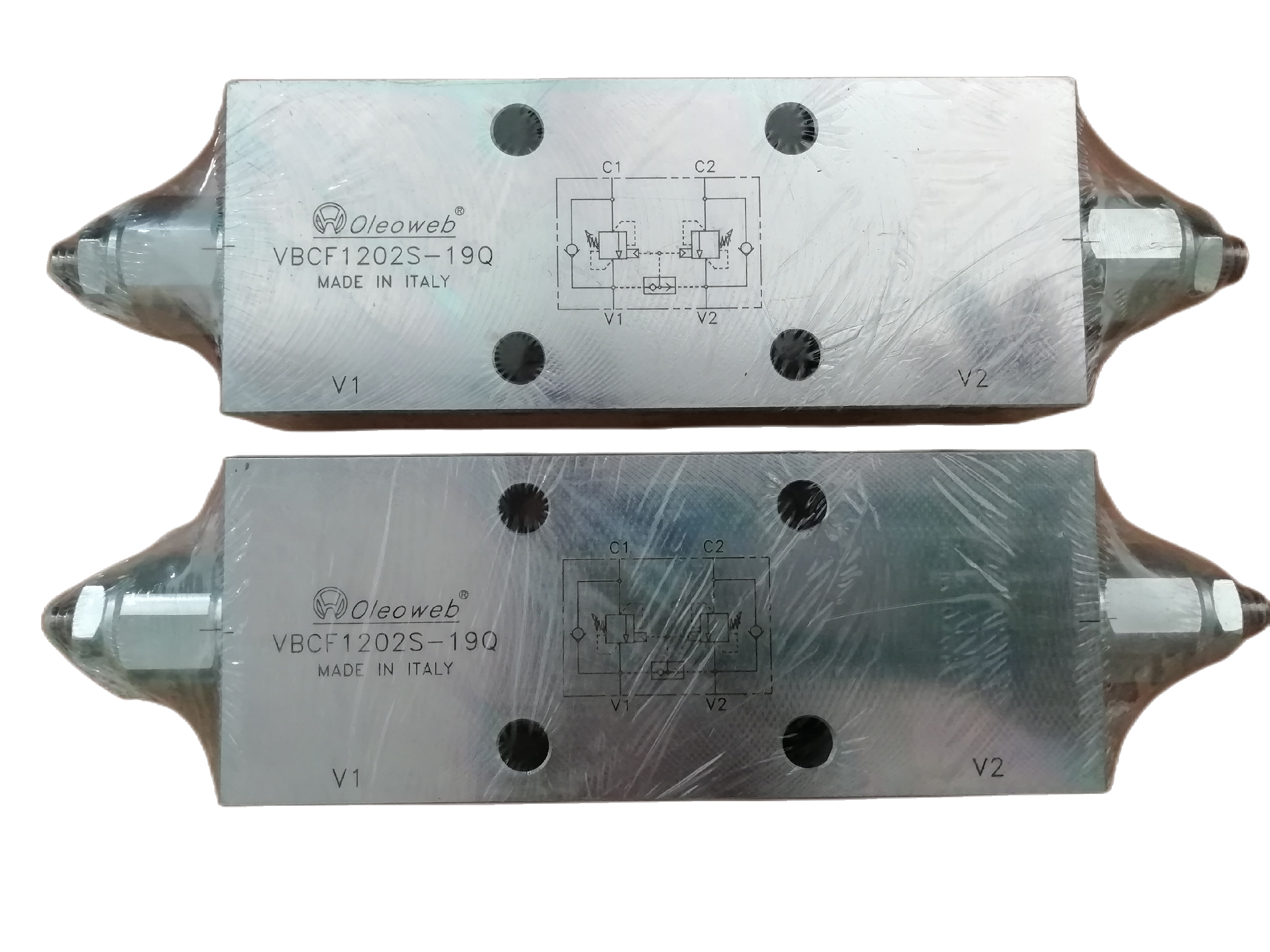

The commonly used models of hydraulic balance valves provided by our company are VBCD1/4" VBCD3/8" VBCD1/2" VBCD3/4" VBCF3082 VBCF1202 VBCL3802 VBCL1202 and other models. Our brands include OM, OLEOWEB, NEM, NEWSOLUTION, HBS, REXROTH, Fluid-App, FLUID PRESS, etc

We can provide all types of hydraulic balance valve, we have our own processing plant, can deliver goods quickly and quality assurance.

We can provide the brand with Oleoweb , HBS, FP, OM, CBF, Rexroth, NEM and Chinese brand alternatives.
