Introduction to SVM100 and HC - RCM Remote Control Valves

The SVM100 and HC - RCM are two popular remote control valves in the hydraulic industry. They are designed to provide precise control of hydraulic functions in various applications.

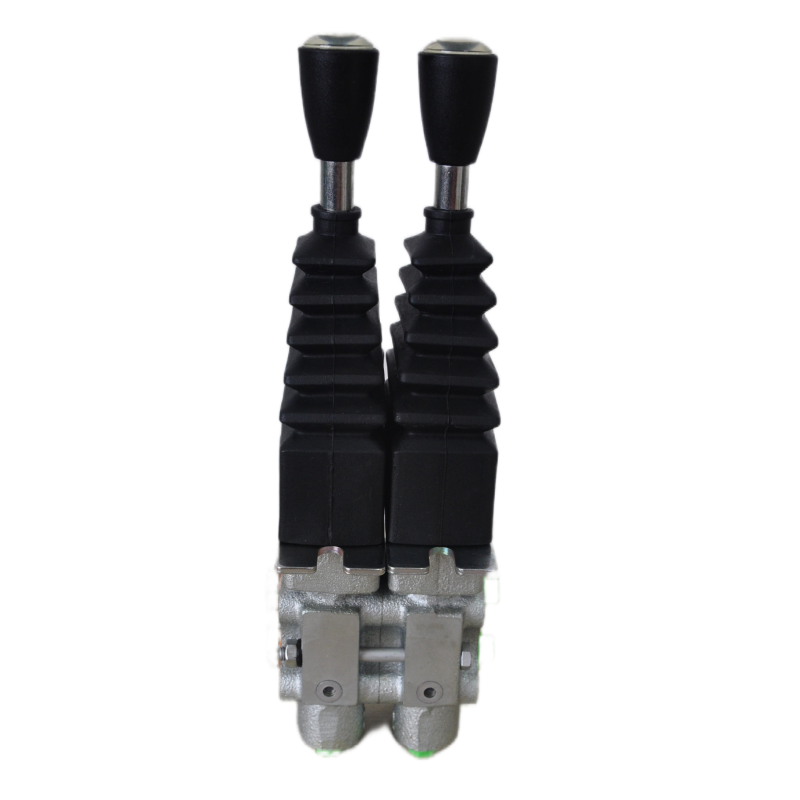

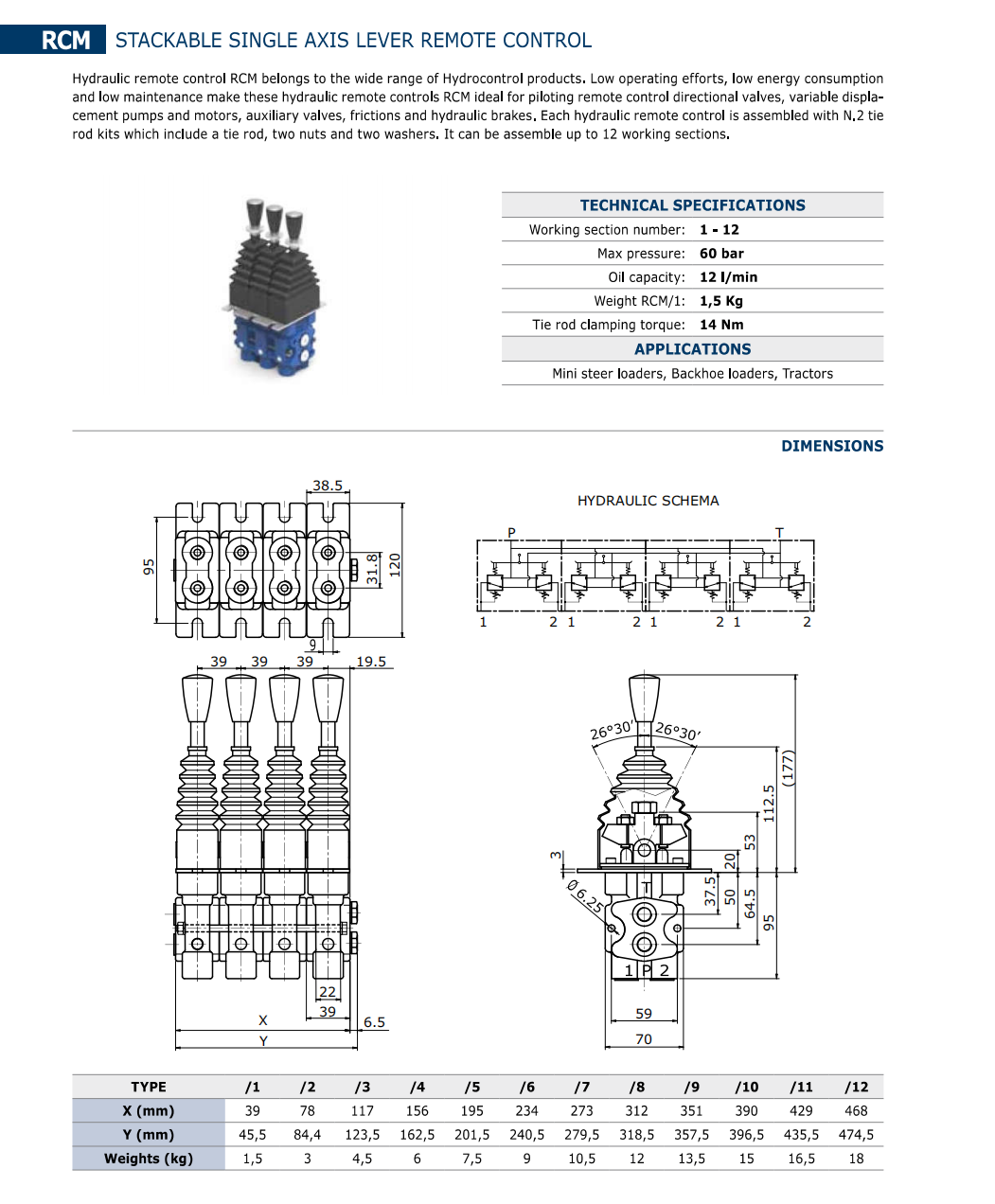

HC-RCM Remote Control Valve

Technical Parameters :

Model : HC - RCM/2

Working Oil Port : G1/4"

Rated Flow : 12 L/min

Peak Pressure : 60 bar

Weight : Approximately 6 kg

Advantages :

Low Operating Efforts : The HC-RCM hydraulic remote control valve is known for its low operating efforts, low energy consumption, and low maintenance.

High Reliability : It is highly reliable and durable, making it suitable for various harsh working conditions.

Application Range :

Mini - Skid Loaders : The HC-RCM valve is ideal for mini - skid loaders, providing precise control of hydraulic functions.

Backhoes and Tractors : It is also suitable for backhoes, tractors, and other engineering vehicles, ensuring efficient and safe operation.

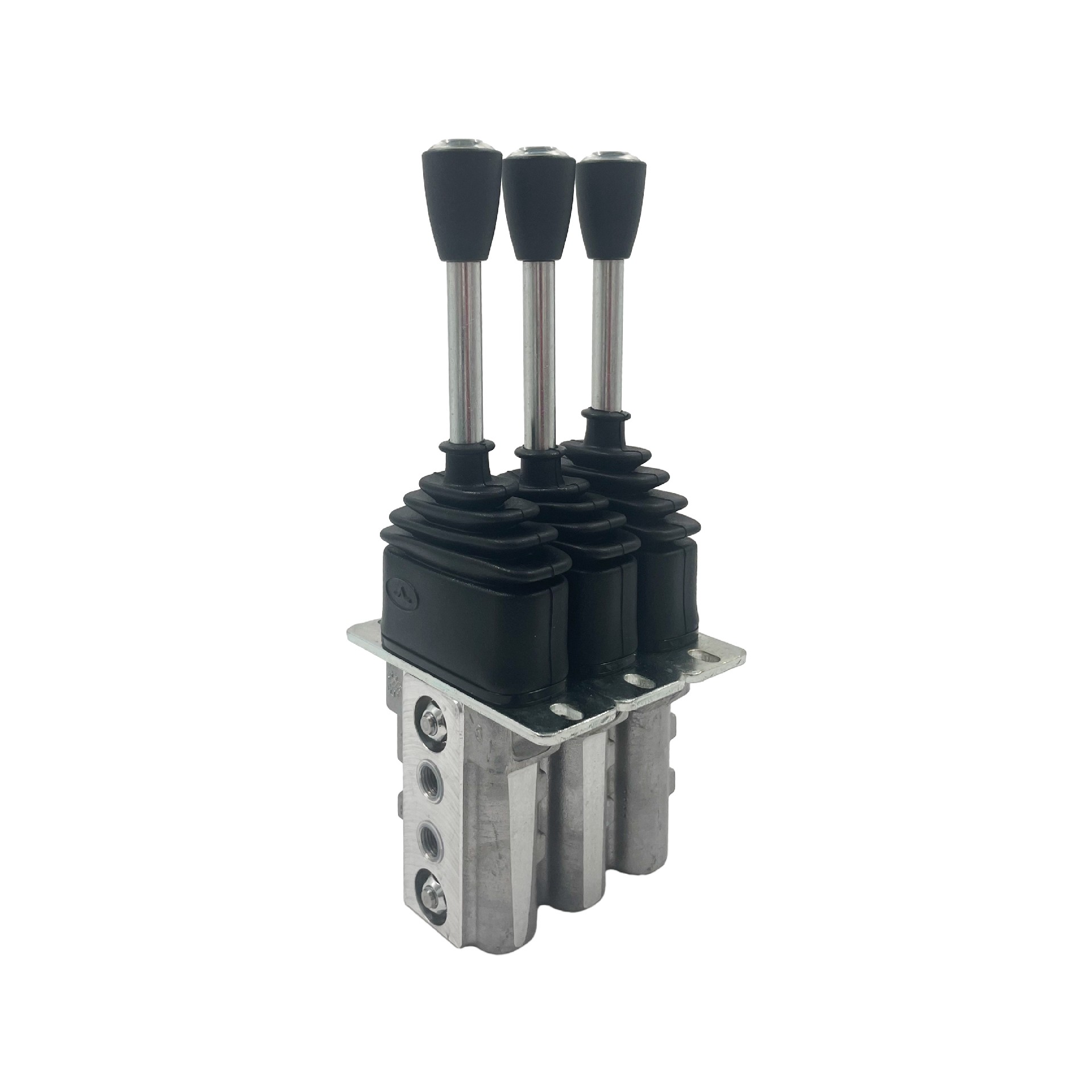

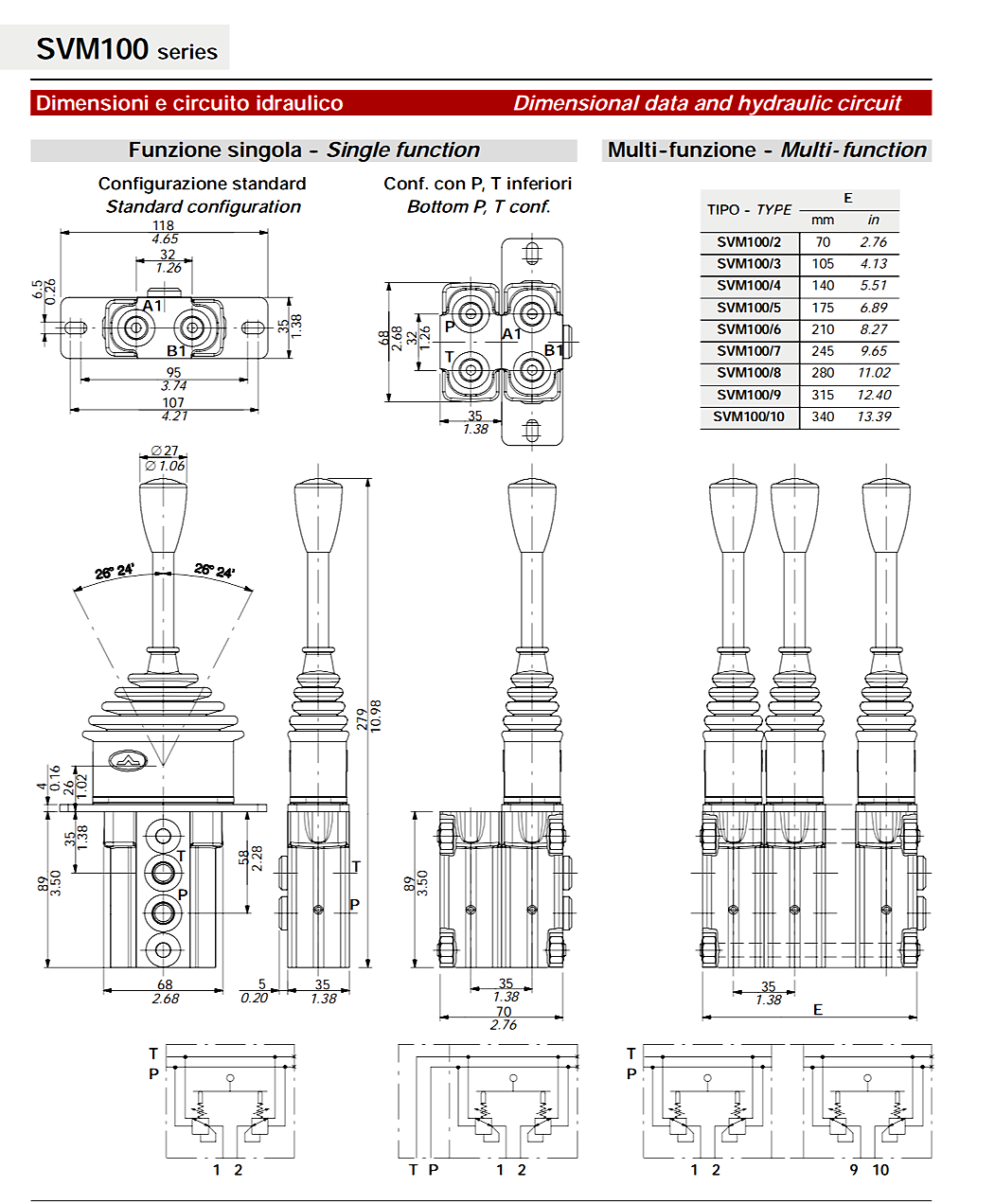

SVM100 Remote Control Valve

Technical Parameters :

Type : Lever type

Number of Ports : From 2 to 20

Nominal Flow Rating : 20 l/min (5.28 US gpm)

Max. Pressure : 100 bar (1450 psi)

Weight : Approximately 6 kg

Advantages :

High Performance : The SVM100 series is known for its high - performance, energy - saving, and controllable features. It can be used as a single valve or assembled into a bank of SVM100/n valves, where more than one valve spool needs to be controlled.

Versatile Applications : It is suitable for a wide range of applications, including agriculture, construction and earth - moving, material handling, and industrial vehicles.

Application Range :

Agriculture : Machine integrated, efficiency and sustainability are the key words of Walvoil’s solutions and systems for agricultural machinery.

Construction and Earth Moving : High performance, energy saving and controllability are the main features of Walvoil’s integrated proposals dedicated to construction and earth - moving machines.

Material Handling : Strength, precise and smooth movement control, compact hydraulics and operator’s comfort are the focus when designing solutions for material handling equipment.

Industrial Vehicles : The SVM100 series serves reliability and safety in industrial vehicles

We can provide all types of reomote control valves, we have our own processing plant, can deliver goods quickly and quality assurance.

We can provide the brand with Walvoil, Hydraulic, Parker, Rexroth, Hawe, Youli, Danfoss and Chinese brand alternatives.
