Section Hydraulic Directional Valves: An Introduction

Section hydraulic directional valves, also known as stack valves, are essential components in hydraulic systems, particularly for mobile and industrial applications. These valves are designed to control the flow and direction of hydraulic fluid, enabling precise movement and operation of machinery. Here’s an overview of their performance features, application range, flow and pressure ranges, and control methods:

Performance Features

Modular Design: Sectional valves offer a high degree of flexibility and customization. They can be stacked to create multiple sections, allowing for complex hydraulic circuits to be built according to specific application requirements.

High Flow and Pressure Ratings: These valves are capable of handling high flow rates and pressures, making them suitable for heavy-duty applications. For example, the DCV40 series sectional directional control valve has a rated flow of 40 L/min and a rated pressure of 31.5 MPa.

Versatile Control Options: Sectional valves can be controlled manually, electrically, hydraulically, or through a combination of these methods, providing versatile operation options.

Application Range

Construction Equipment: Used in excavators, loaders, and cranes to control the movement of hydraulic cylinders and motors.

Agricultural Machinery: Applied in tractors and harvesters for hydraulic functions such as lifting and steering.

Industrial Machinery: Utilized in various industrial equipment where precise control of hydraulic fluid flow is required.

Flow and Pressure Ranges

Flow Range: Sectional valves typically handle flow rates ranging from 35 to 700 liters per minute, depending on the specific model and manufacturer.

Pressure Range: The working pressure for these valves can range up to 350 bar, making them suitable for high-pressure hydraulic systems.

Control Methods

Manual Control: Operated directly by a lever or handle, manual control valves are simple and reliable.

Electric Control: Using solenoids to actuate the valve, electric control valves offer precise and responsive operation.

Hydraulic Control: Controlled by hydraulic pressure, these valves are suitable for applications requiring high power and precision.

Electro-hydraulic Control: Combining both electric and hydraulic elements, electro-hydraulic control valves provide precise control and are ideal for complex hydraulic systems.

Brands

Walvoil: Known for its high-quality sectional valves with a wide range of flow rates and configurations.

Hydrocontrol: Offers a variety of sectional, monoblock, load-sensing, and selector valves, as well as hydraulic remote controls, gear pumps, motors, and flow dividers.

Parker: Provides a range of motion and control technologies, including hydraulic and pneumatic systems, filtration systems, and aerospace components.

Hawe: Specializes in hydraulic components and systems, offering a variety of directional control valves with high performance and reliability.

Galtech: Known for its hydraulic components, including sectional valves, with a focus on quality and innovation.

Youli: Offers a range of hydraulic products, including directional control valves, hydraulic gear pumps, solenoid valves, hydraulic motors, and steering units.

Danfoss: A leading provider of energy-efficient solutions, including hydraulic components and systems.

In summary, section hydraulic directional valves are versatile and reliable components that play a crucial role in the operation of hydraulic systems. Their modular design, high performance, and various control options make them a popular choice in a wide range of applications.

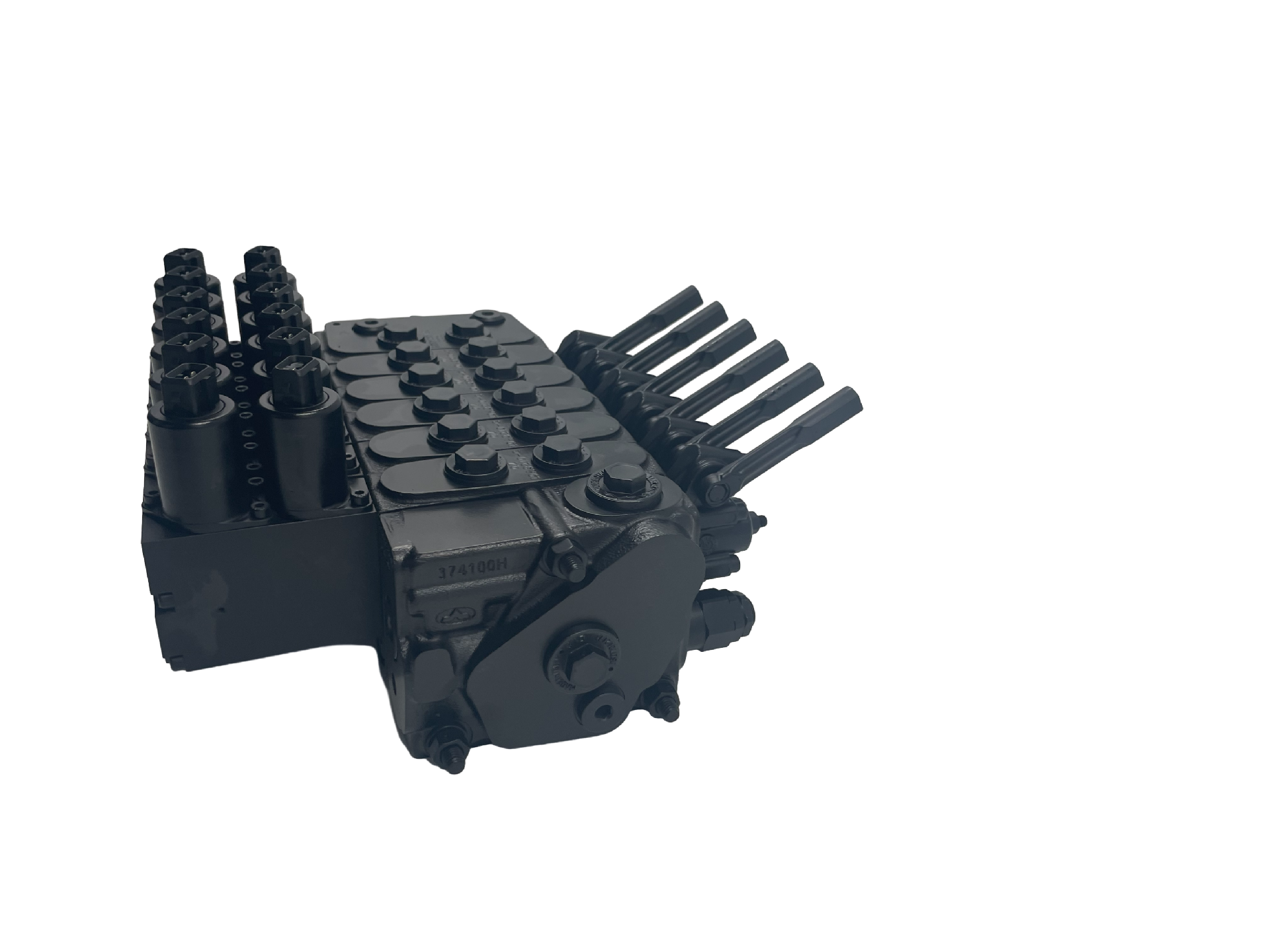

Section directional valve is mainly used in hydraulic drilling rig, crane, slip loader, road rescue vehicle

The hydraulic flow rate of the system is 50L/min, 80L/min,100L/min, 150L/min, 180L/min, 240L/min, 380L/min

Rated pressure: 315bar

The control mode is manual control, pilot hydraulic control, electric control

Working spool 1-12 are available for customers

We can provide all types of hydraulic directional control valves, we have our own processing plant, can deliver goods quickly and quality assurance.

We can provide the brand with Walvoil, Hydraulic, Parker, Rexroth, Hawe, Youli, Danfoss and Chinese brand alternatives.
